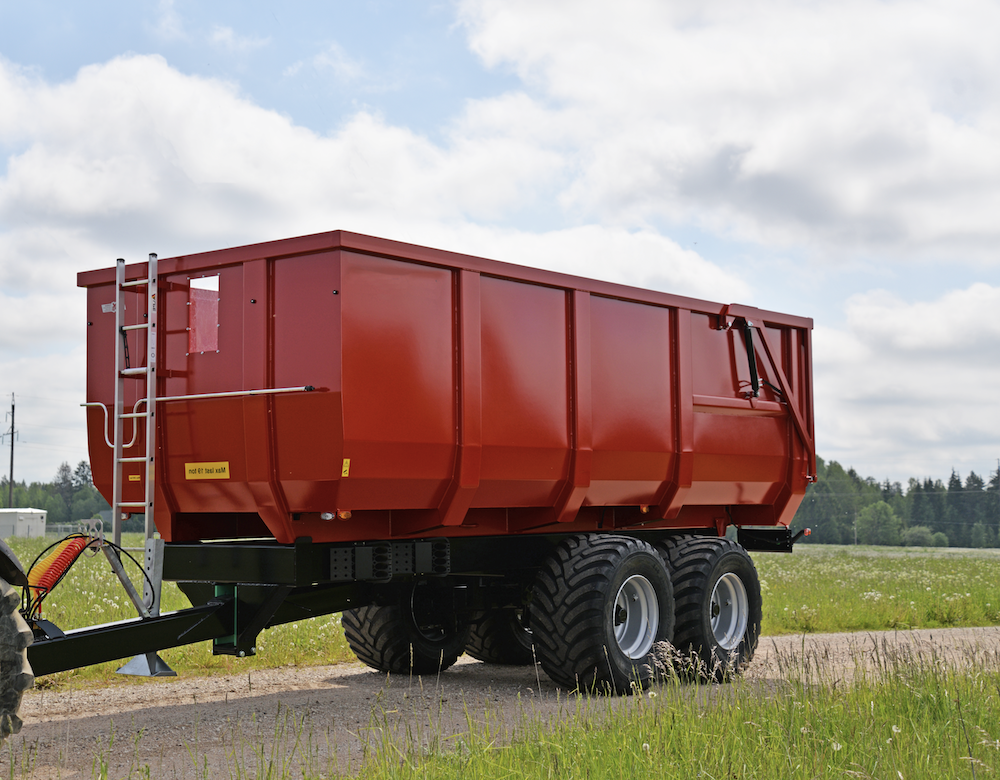

Dumper trailer with a lot of volume. Max capacity with extensions 33,7 m3
Model RV19-22SB
Length(mm)(With HSD01)                         7550
Width(mm) 2550
Height(mm) 3185
Internal measurements of a platform(mm) 5830x2310x1600
Capacitance(m3), ()-with volume backdoor 21,6
Capacitance with extensions (m3), ()-with volume backdoor 33,7
Base 4455+1480
Empty weight(kg) 5900
Max load capacity(kg) 19000
Total weight(kg) 24900
Hitch load(kg) 3500
Axel sum 2
Permissible axel load(kg) 10700
Hub/axel 100x100, 10bolts
Suspension Spring bogie
Brake type 406x120(412E),           4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 600/50-22,5
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 4
Optional wheels 710/45-22,5 ET-50

For a trailer with detailed accessories list, please send price request.
