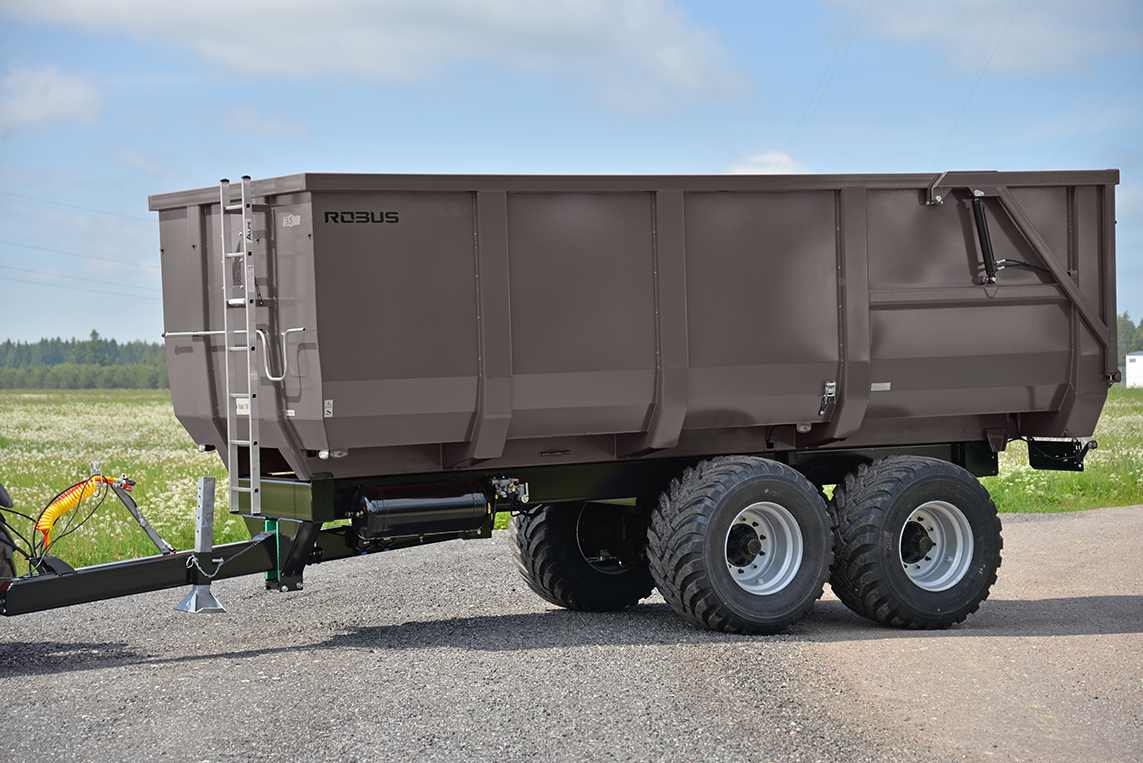

Volume dumper trailer for tough jobs.

Model RV19-20
Length(mm)(With HSD01)                         7439
Width(mm) 2550
Height(mm) 3100
Internal measurements of a platform(mm) 5530x2310x1600
Capacitance(m3), ()-with volume backdoor 20,4
Capacitance with extensions (m3), ()-with volume backdoor 32
Base 4640+1350
Empty weight(kg) 5100
Max load capacity(kg) 19000
Total weight(kg) 24100
Hitch load(kg) 3500
Axel sum 2
Permissible axel load(kg) 10300
Hub/axel 100x100, 10bolts
Suspension Mechanical bogie
Brake type 400x80(408E); 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 600/50R-22,5
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 4
Optional wheels 710/45-22,5

For a trailer with detailed accessories list, please send price request.
