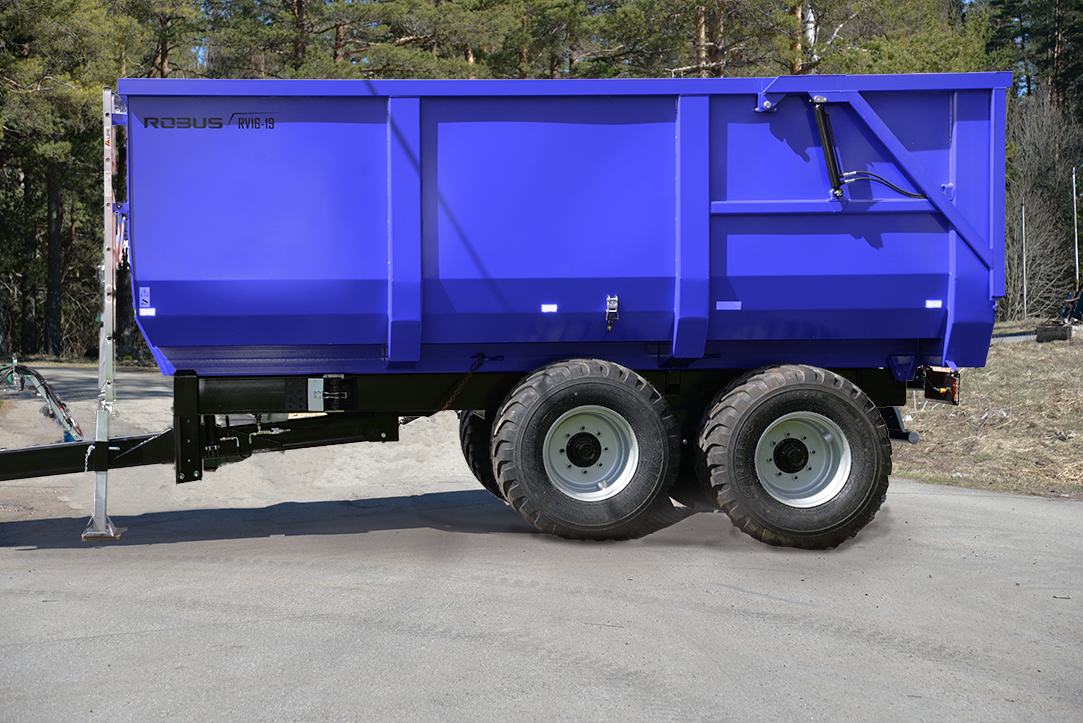

Volume dumper trailer
Model RV16-19SB
Length(mm)(With HSD01)                         6970
Width(mm) 2550
Height(mm) 3135
Internal measurements of a platform(mm) 5250x2310x1600
Capacitance(m3), ()-with volume backdoor 19,4
Capacitance with extensions (m3), ()-with volume backdoor 30,3
Base 4245+1360
Empty weight(kg) 4900
Max load capacity(kg) 16000
Total weight(kg) 20900
Hitch load(kg) 3500
Axel sum 2
Permissible axel load(kg) 8700
Hub/axel 100x100, 8bolts
Suspension Spring bogie
Brake type 406x120(412E); 2 or 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 550/45-22,5
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 4
Optional wheels 600/50-22,5 710/45-22,5

Photos are illustrative. For a trailer with detailed accessories list, please send price request.
