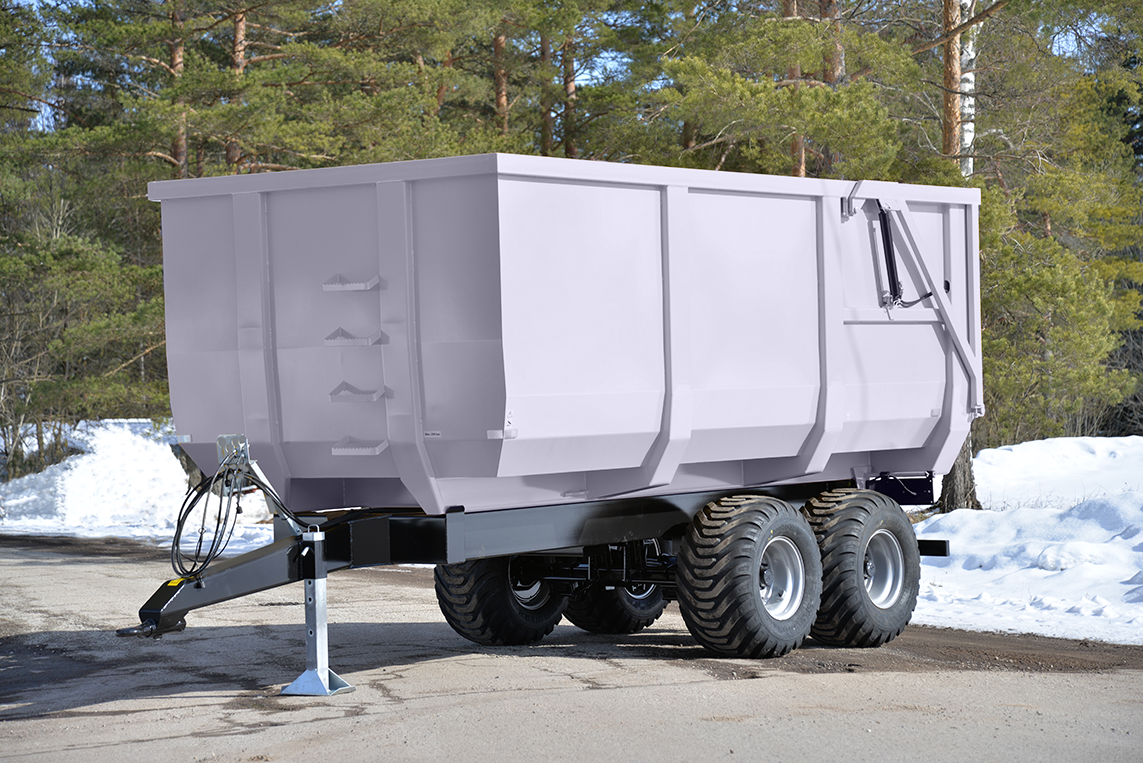

Volume trailer - dumper trailer with max capacity of 17,2 m3
For a trailer with detailed accessories list, please send price request.
| Model | RV12-17 |
| Length(mm)(With HSD01) | 6375 |
| Width(mm) | 2550 |
| Height(mm) | 2750 |
| Internal measurements of a platform(mm) | 4670x2310x1600 |
| Capacitance (m3), ()-with volume backdoor | 17,2 |
| Capacitance with extensions (m3), ()-with volume backdoor | - |
| Base | 4054+1050 |
| Empty weight(kg) | 3350 |
| Max load capacity(kg) | 12000 |
| Total weight(kg) | 15350 |
| Hitch load(kg) | 2700 |
| Axel sum | 2 |
| Permissible axel load(kg) | 6325 |
| Hub/axel | 80x80, 8bolts |
| Suspension | Mechanical bogie |
| Brake type | 300x90; 0, 2 or 4 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | |
| Standard wheels | 520/50-17 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 6 |
| Thickness of box’s side sheet(mm) | 4 |
| Optional wheels | 500/50-17 |
For a trailer with detailed accessories list, please send price request.
