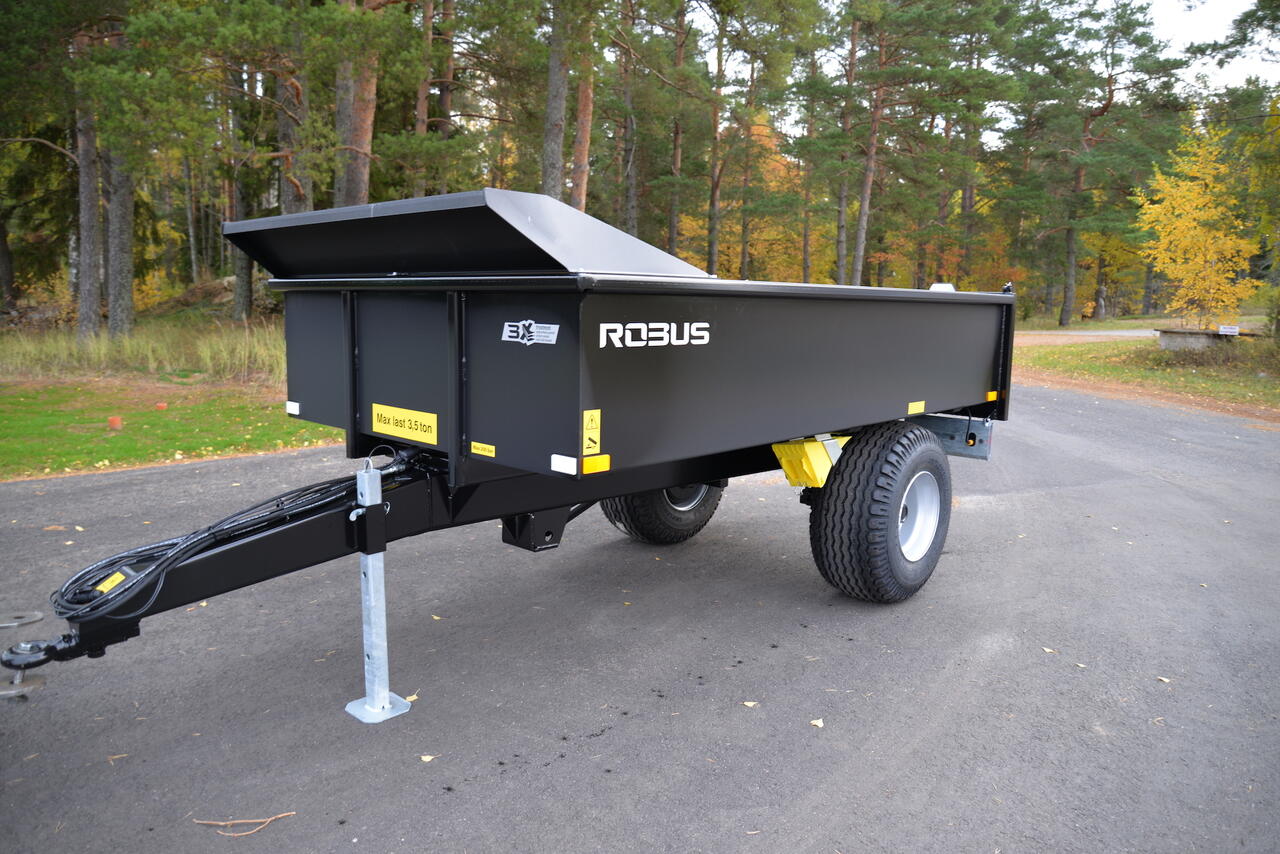

Small dumper trailer RE3-03 has very good maneuverability. Ideal for using with excavator on narrow streets and small construction sites.
Model RE3-03
Length(mm)(With HSD01)                         4350
Width(mm) 1840
Height(mm) 1480
Internal measurements of a platform(mm) 3000x1720x550
Capacitance(m3), ()-with volume backdoor 2,84
Capacitance with extensions (m3), ()-with volume backdoor -
Base 3290
Empty weight(kg) 740
Max load capacity(kg) 3500
Total weight(kg) 4240
Hitch load(kg) 1500
Axel sum 1
Permissible axel load(kg) 2740
Hub/axel 70x70, 6 bolts
Suspension  -
Brake type 300x90; 0 or 2 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L) 1,8
Standard wheels 11,5/80-15,3
Tilt angle 52
Thickness of box’s bottom sheet(mm) 3
Thickness of box’s side sheet(mm)
Optional wheels 400/60-15,5

For a trailer with detailed accessories list, please send price request.
