Small dumper trailer RE3-03 has very good maneuverability. Ideal for using with excavator on narrow streets and small construction sites.

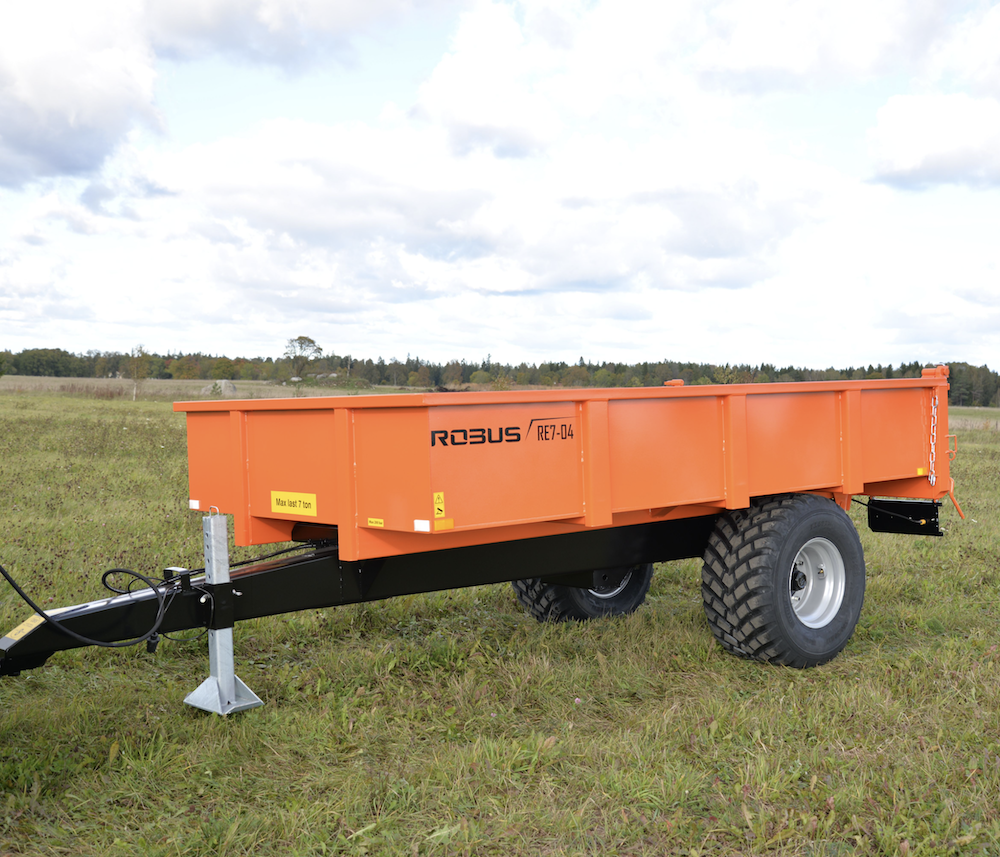

Model RE7-04
Length(mm)(With HSD01)                         5332
Width(mm) 2215
Height(mm) 1720
Internal measurements of a platform(mm) 3680x2080x550
Capacitance(m3), ()-with volume backdoor 4,2
Capacitance with extensions (m3), ()-with volume backdoor -
Base 4020
Empty weight(kg) 1450
Max load capacity(kg) 7000
Total weight(kg) 8450
Hitch load(kg) 1600
Axel sum 1
Permissible axel load(kg) 6850
Hub/axel 80x80, 8bolts
Brake type 300x90; 0 or 2 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 500/50-17
Tilt angle 52
Thickness of box’s bottom sheet(mm) 4
Thickness of box’s side sheet(mm) 4
Optional wheels 500/50-17

Photos are illustrative. For a trailer with detailed accessories list, please send price request.
