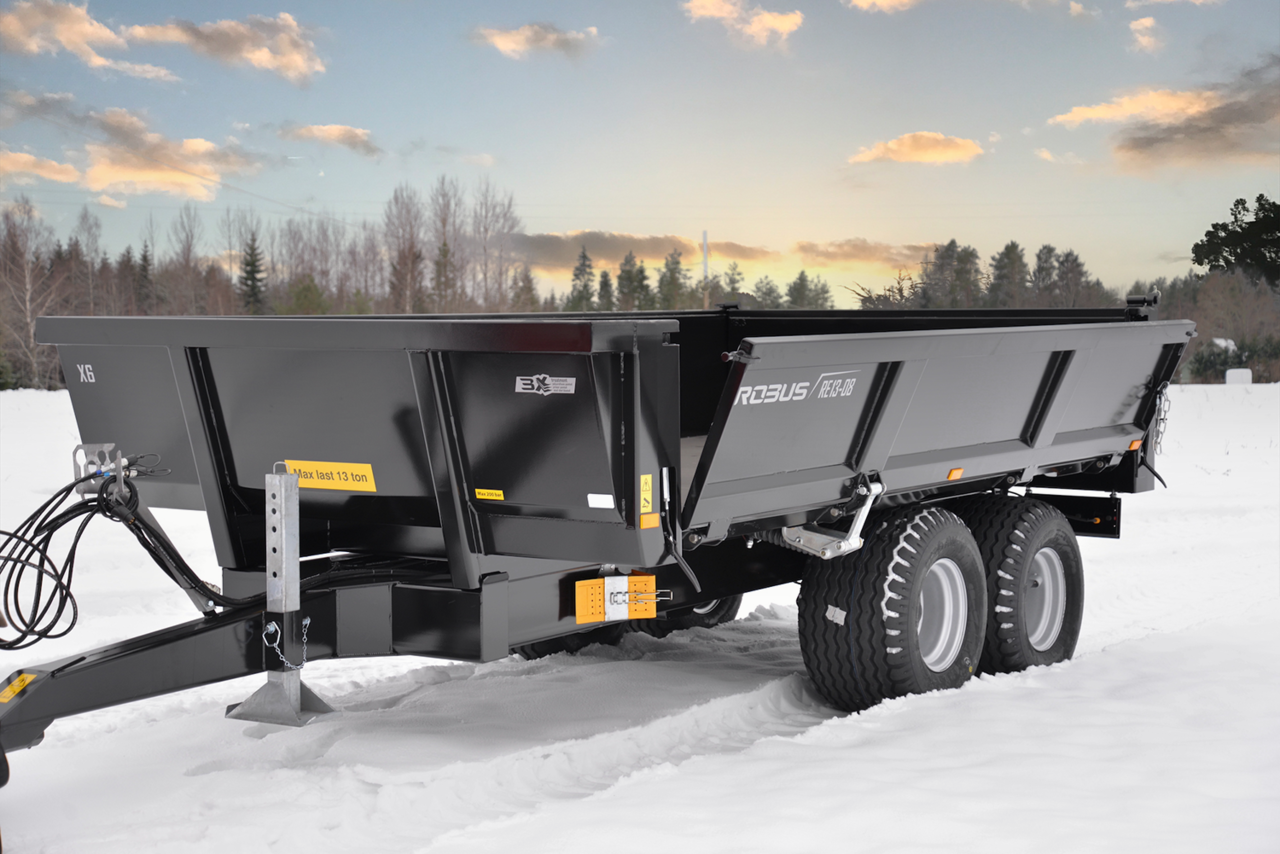

This small excavator trailer with hydraulic side panel gives more possibilities to operate smoothly on different sides of the vehicle.
Model RE13-08HYS
Length(mm) (With HSD01)                         6375(6519)
Width(mm) 2550
Height(mm) 2029
Internal measurements of a platform(mm) 4670x2380x700
Capacitance(m3), ()-with volume backdoor 7,8
Capacitance with extensions (m3), ()-with volume backdoor 15,6
Base 4054+1050
Empty weight(kg) 3254
Max load capacity(kg) 13000
Total weight(kg) 16254
Hitch load(kg) 2600
Axel sum 2
Permissible axel load(kg) 6827
Hub/axel 80x80, 8 bolts
Suspension Mechanical bogie
Brake type 300x90; 0; 2 or 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L) 20
Standard wheels 500/50-17
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 5
Optional wheels  520/50-17

For a trailer with detailed accessories list, please send price request.
