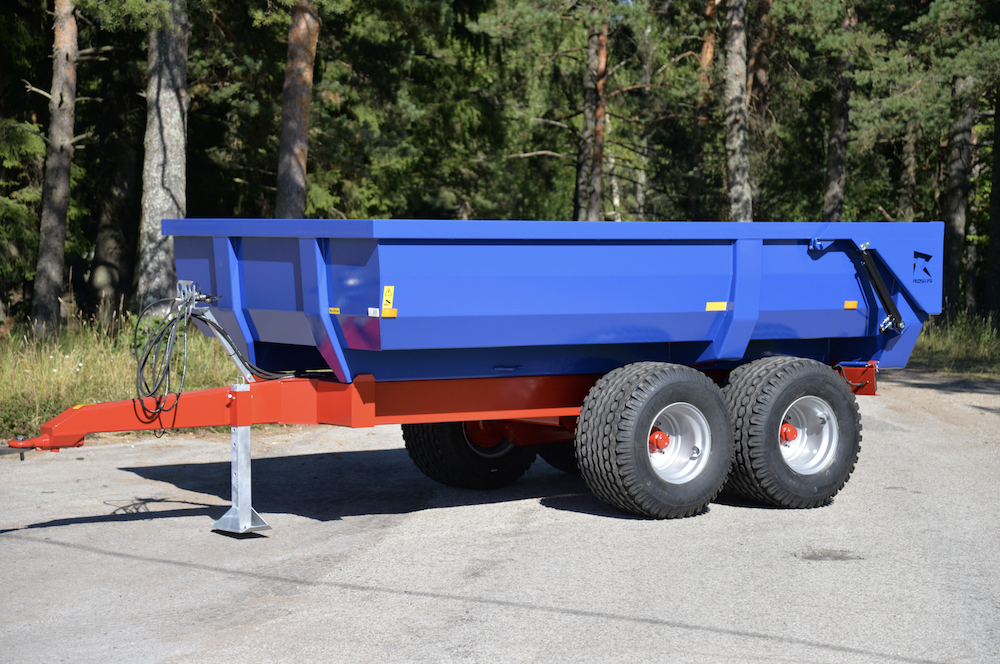

Model RD10-07
Length(mm)(With HSD01)                         5685
Width(mm) 2550
Height(mm) 1871
Internal measurements of a platform(mm) 3970x2310x780
Capacitance(m3), ()-with volume backdoor 7,2
Capacitance with extensions (m3), ()-with volume backdoor 13,6
Base 3520+1000
Empty weight(kg) 2350
Max load capacity(kg) 10000
Total weight(kg) 12350
Hitch load(kg) 1800
Axel sum 2
Permissible axel load(kg) 5275
Hub/axel 70x70, 6bolts
Suspension Mechanical bogie
Brake type 300x90; 0, 2 or 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 400/60-15,5
Tilt angle 52
Thickness of box’s bottom sheet(mm) 5
Thickness of box’s side sheet(mm) 5
Optional wheels 500/50-17
For a trailer with detailed accessories list, please send price request.
