Photos are illustrative. For a trailer with detailed accessories list, please send price request.

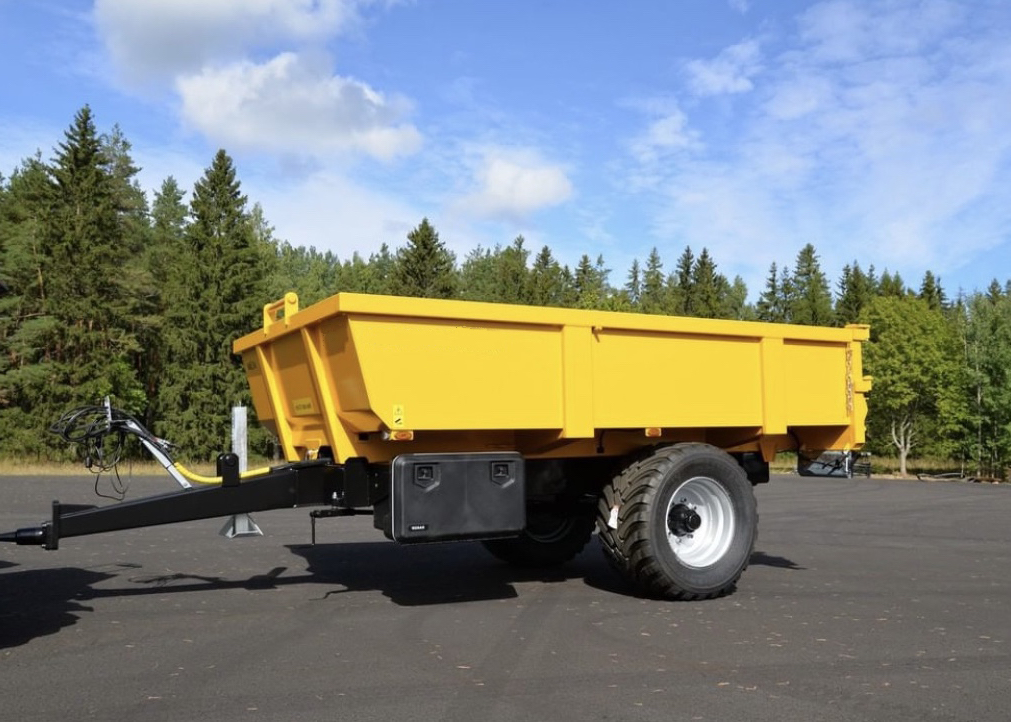

This small tractor trailer has a very good maneuverability. It is designed for working with excavators and small tractors on narrow streets, small construction sites etc. The design of the bottom of the box allows you to place a miniexcavator on it.
It has reduced pressure on ground because of the 600/50 R 22,5 wheels. That makes it better suitable for using even on grass surface.
For price request, please send the name of the model and accessories you are interested in. To find a reseller in European countries, look here.
It has reduced pressure on ground because of the 600/50 R 22,5 wheels. That makes it better suitable for using even on grass surface.
| Model | RE10-07-1A |
| Length(mm)(With HSD01) | 5685 |
| Width(mm) | 2550 |
| Height(mm) | 2050 |
| Internal measurements of a platform(mm) | 3970x2380x700 |
| Capacitance(m3), ()-with volume backdoor | 6,6 |
| Capacitance with extensions (m3), ()-with volume backdoor | - |
| Base | 3980 (3856) |
| Empty weight(kg) | 2670 |
| Max load capacity(kg) | 10000 |
| Total weight(kg) | 12670 |
| Hitch load(kg) | 1800 |
| Axel sum | 1 |
| Permissible axel load(kg) | 10870 |
| Hub/axel | 100x100, 8 bolts |
| Suspension | - |
| Brake type | 406x120(412E); 2 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | 12 |
| Standard wheels | 600/50-22,5 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 5 |
| Thickness of box’s side sheet(mm) | 5 |
| Optional wheels |
