Photos are illustrative. For a trailer with detailed accessories list, please send price request.

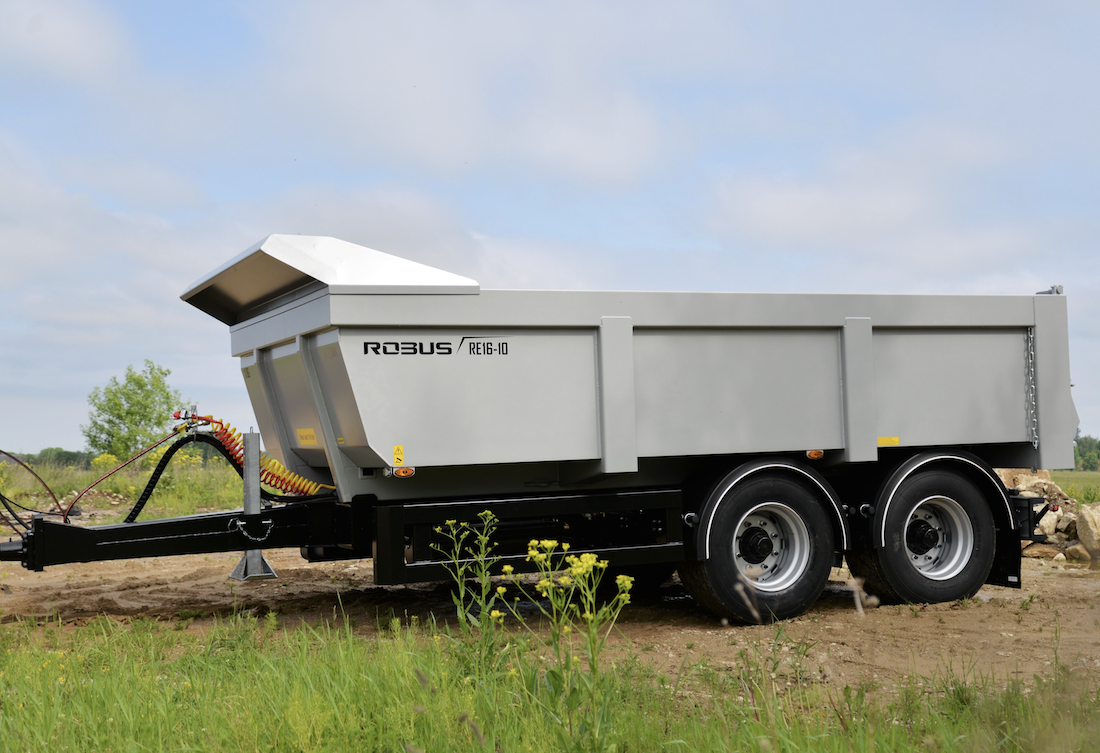

This tractor trailer has a low center of gravity, which gives even better performance. In addition parabolic suspension.
| Model | RE16-10PSHS |
| Length(mm)(With HSD01) | 6375 |
| Width(mm) | 2550 |
| Height(mm) | 2080 |
| Internal measurements of a platform(mm) | 4670x2380x900 |
| Capacitance(m3), ()-with volume backdoor | 10 |
| Capacitance with extensions (m3), ()-with volume backdoor | |
| Base | 4093+1200 |
| Empty weight(kg) | 3840 |
| Max load capacity(kg) | 15660 |
| Total weight(kg) | 19500 |
| Hitch load(kg) | 3500 |
| Axel sum | 2 |
| Permissible axel load(kg) | 8000 |
| Hub/axel | 90x90, 8bolts |
| Suspension | Tandem parabolic springs |
| Brake type | 300x135(314E), 4 brakes |
| Speed limit(km/h) | < 60(Airbr) |
| Hydraulic circuit working pressure of a brake(bar) | 115 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | |
| Standard wheels | 435/50R-17 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 6 |
| Thickness of box’s side sheet(mm) | 6 |
| Optional wheels |
For a trailer with detailed accessories list, please send price request.
This small excavator trailer has a very good maneuverability. It is designed for working on narrow streets, small construction sites etc.
